Coordinated and clash-free architectural and MEP BIM models speed up installation of utilities at national park in the USA
Before time delivery helped meet tender deadlines
Coordinated BIM models reduced iterations and RFIs
Improved project visibility with HD renderings
Client Profile.
The client is a leading building contractor based in the US with a track record of successful delivery of hundreds of commercial as well as residential global projects.
Business Needs.
The client was working on expansion of garden area and installation of new utility systems for a public park in the US. The project was sensitive since the new installation had to be implemented without disturbing existing mechanical, electrical, plumbing and fire protection systems.
To ensure that the new utility systems were installed in sync with existing systems while fitting seamlessly into the architecture of the garden terrain, the client needed:
Architectural BIM models of the terrain at LOD 300 based on CAD drawings of garden
Coordinated 3D MEPF BIM models for mechanical, electrical, plumbing and fire protection systems
HD rendering of the project for best visualization and effective presentation to authorities
The firm partnered with HitechDigital to carry out this project.
Project Samples.
BIM Model for Public Park
BIM LOD 300 for Park
BIM Clash Detection
Challenges.
One of the key challenges of the project was its time sensitivity given the tender deadlines. The HitechDigital team needed to complete the project within a short duration of six weeks trying to navigate the following constraints:
Incomplete as-built documentation for park area
Need to fit in voluminous mechanical, electrical and plumbing systems through a maze of existing MEP components.
Solution.

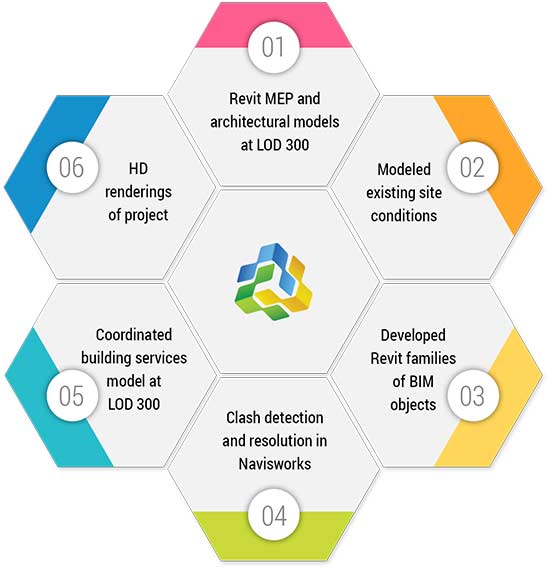

HitechDigital’s BIM team delivered a composite package of architectural and MEP BIM solutions models to facilitate harmonious installation of new utility systems in the national park. The deliverables included:
An information-rich architectural model at LOD 300 of new garden area
HD renderings of the architectural model
Revit families of BIM objects for the site
Clash-free coordinated 3D MEP model (along with clash detection reports using Navisworks)
Approach.
A team of 10 BIM modelers initially studied input drawings and requirements sent by the client and documented scope of work.
The team first created terrain models with the given contour points based on CAD drawings of terrain.
These models were then imported to Revit to create 3D architectural models of existing site, structure and systems.
They next created a 3D MEP model with precise layout and services as per the proposed designs.
The MEP and architectural models were then coordinated with existing connections and services to help avoid interferences.
Clash detection reports were generated using Navisworks; any clashes between the existing and new MEP systems were identified and resolved.
Once the model was approved by the client, the BIM experts also created Revit families of BIM objects. Complex structures, which could not be modelled using Revit family were developed using Rhino. Once a Revit family was created using the Rhino file, it was then placed into the Revit Model.
The team also delivered HD renderings of the project for better visualization and client presentation.
